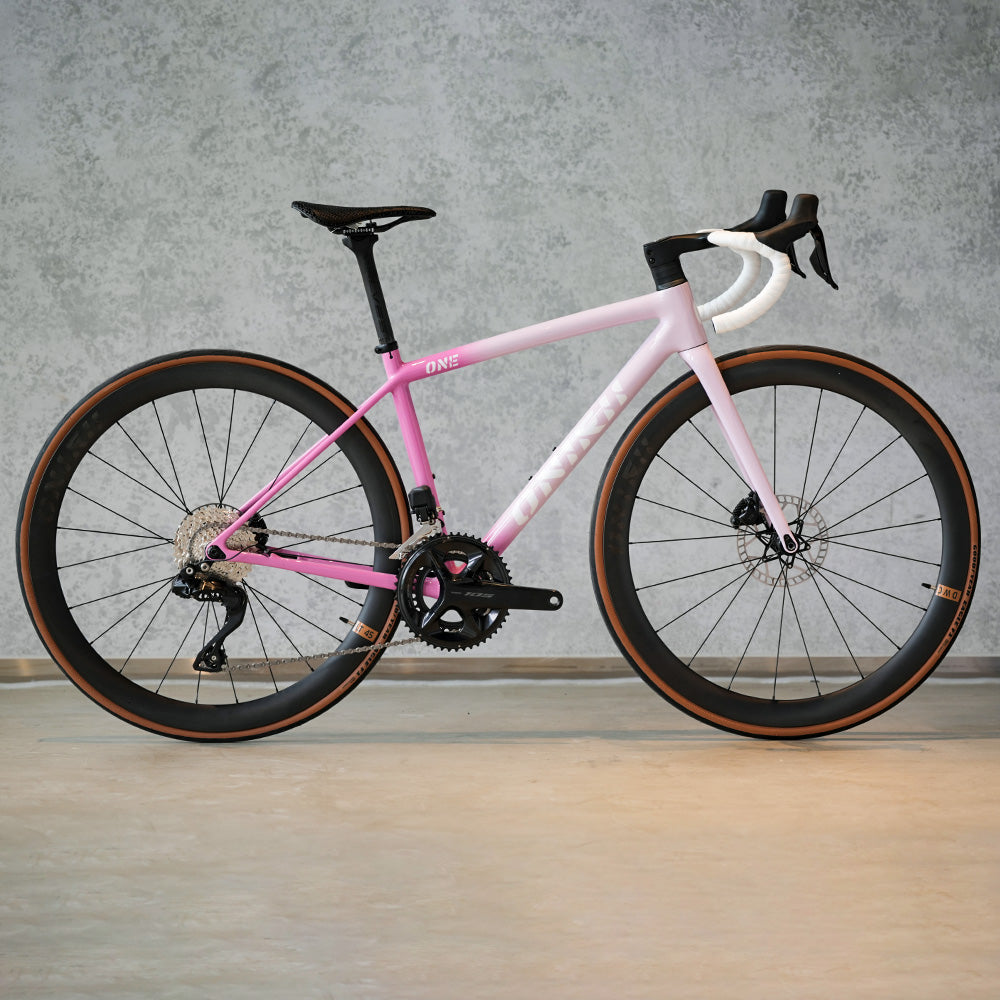

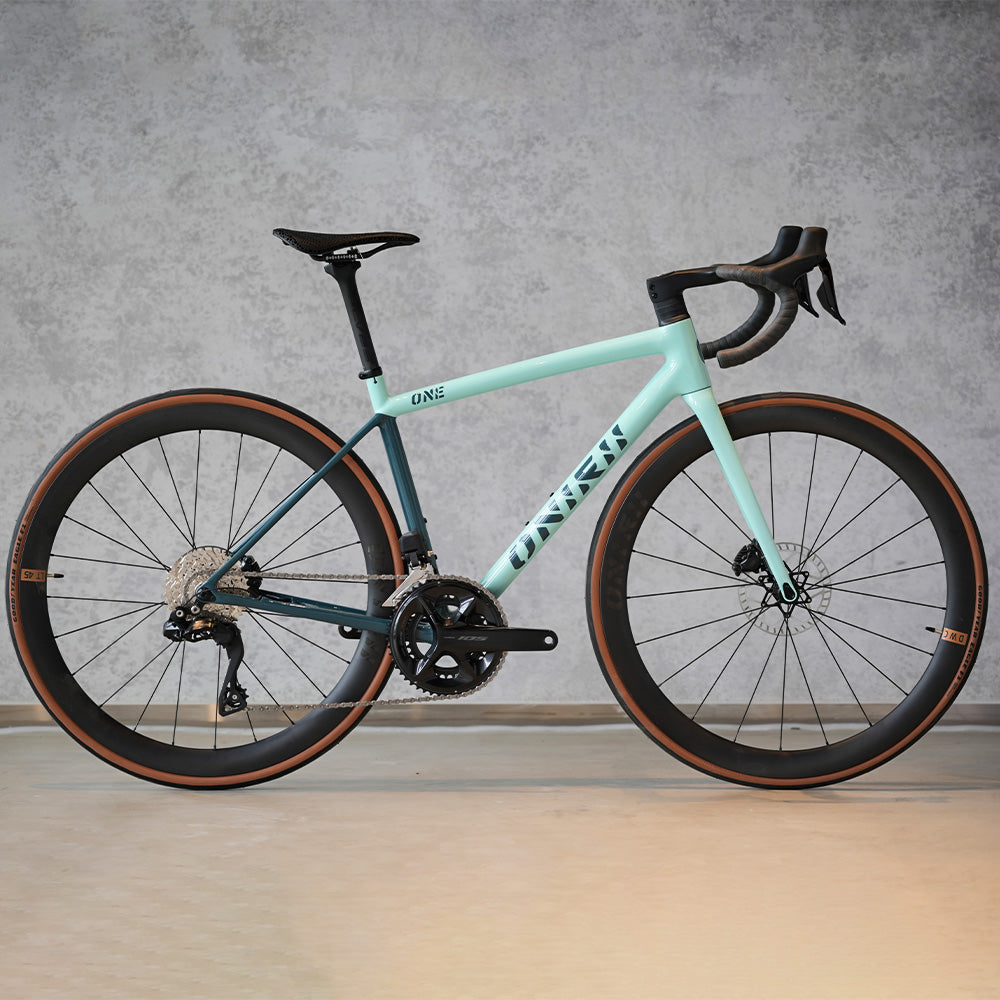

ONIRII Ultralight Carbon Climbing Frame Full Internal Cable Layout with Carbon Integrated Handlebar and Fork 700C for Road Bike

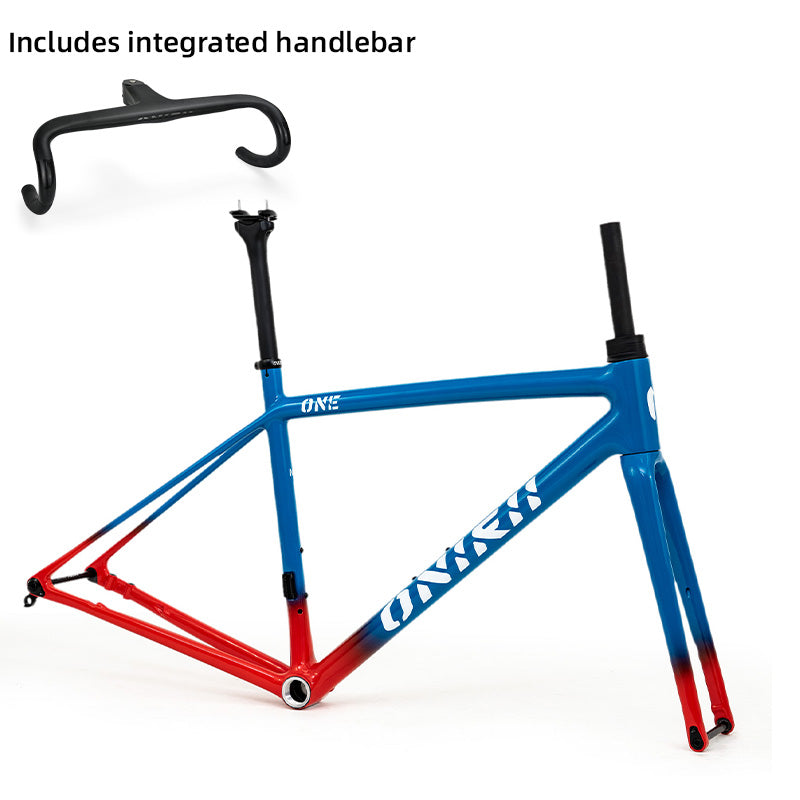

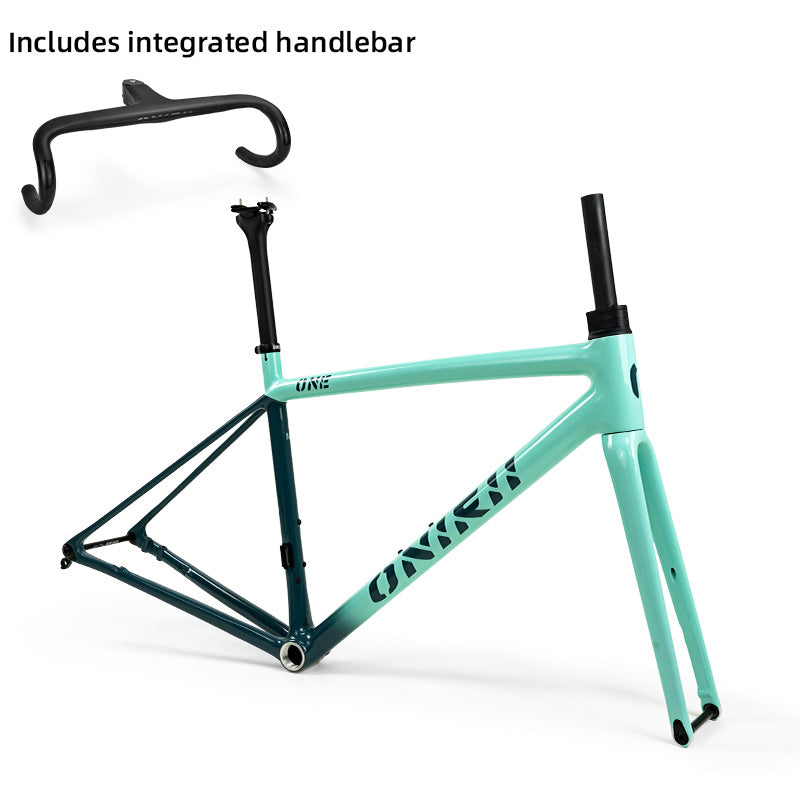

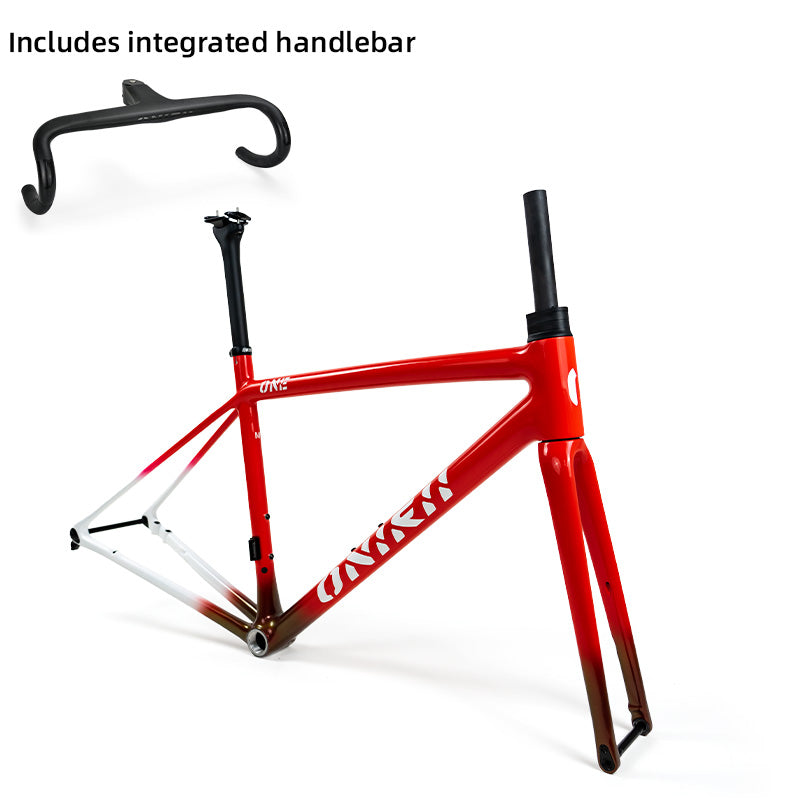

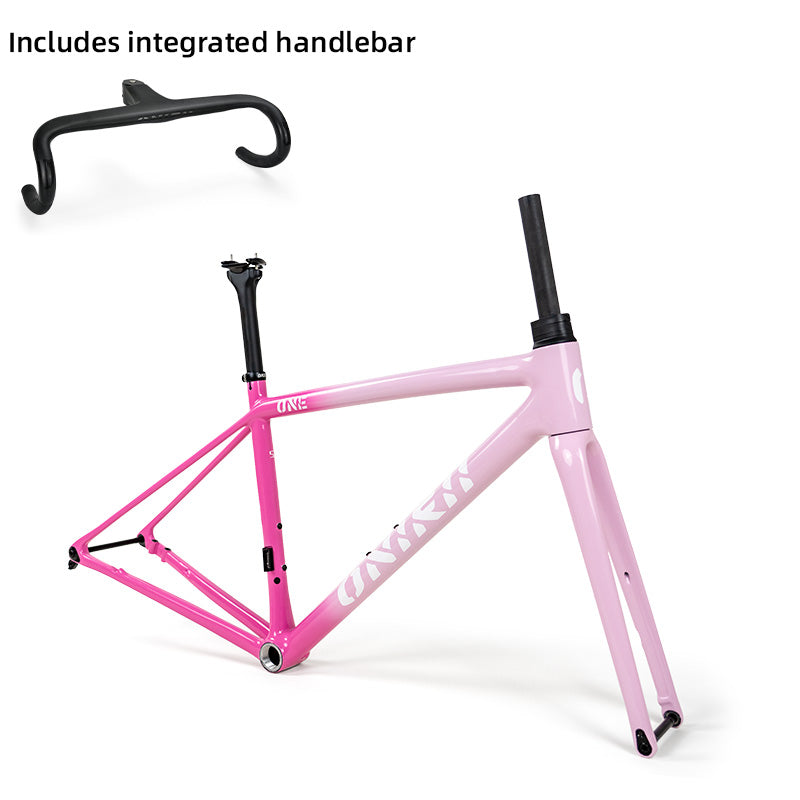

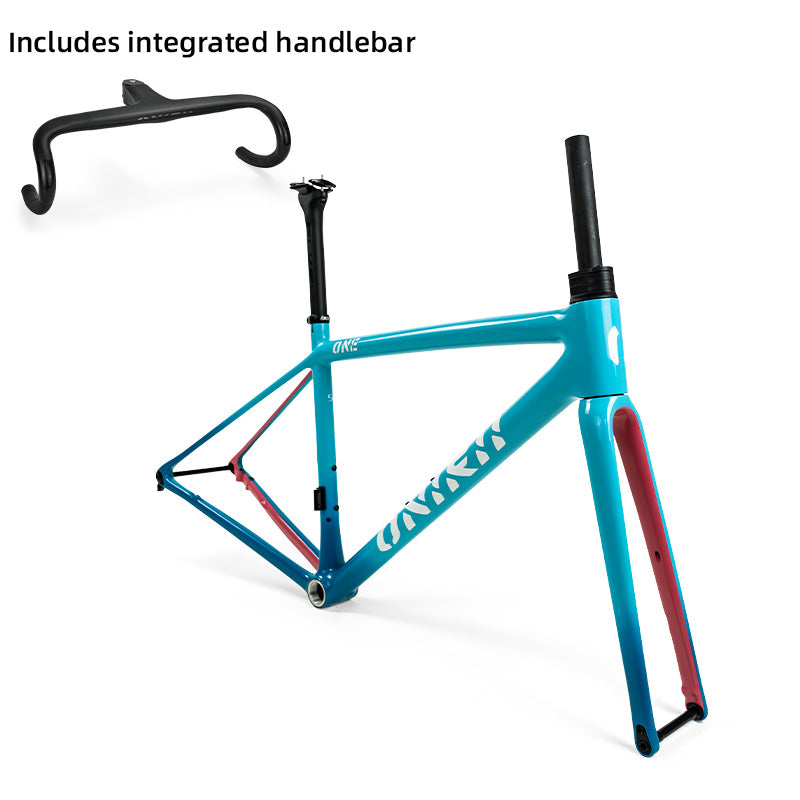

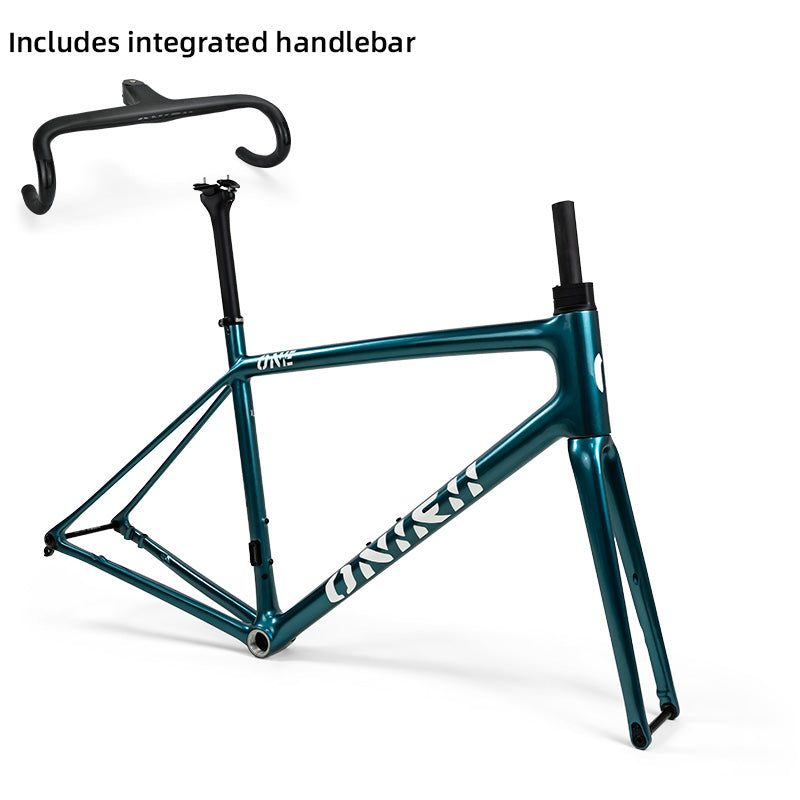

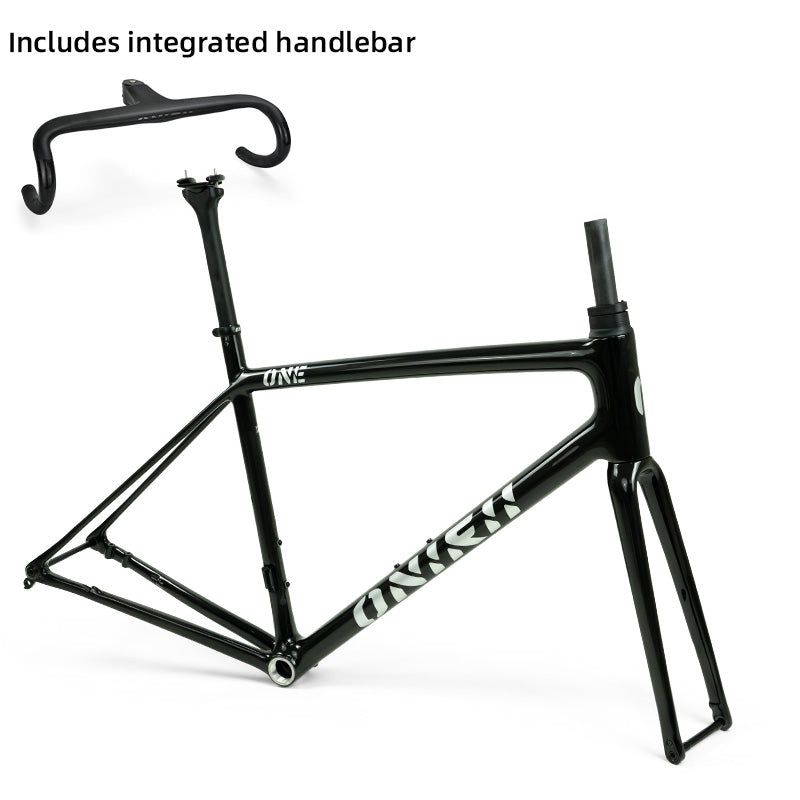

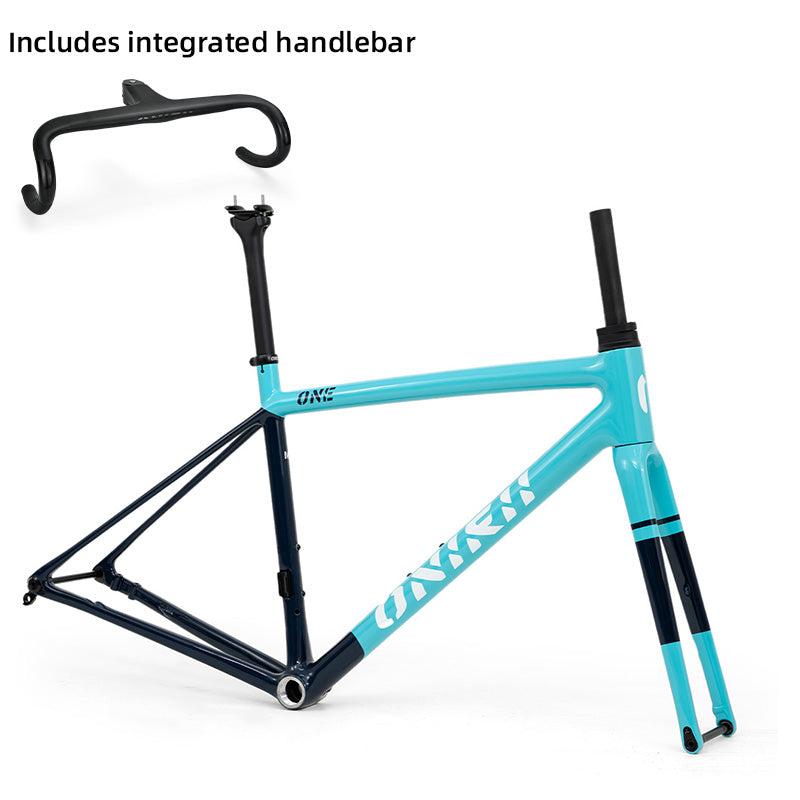

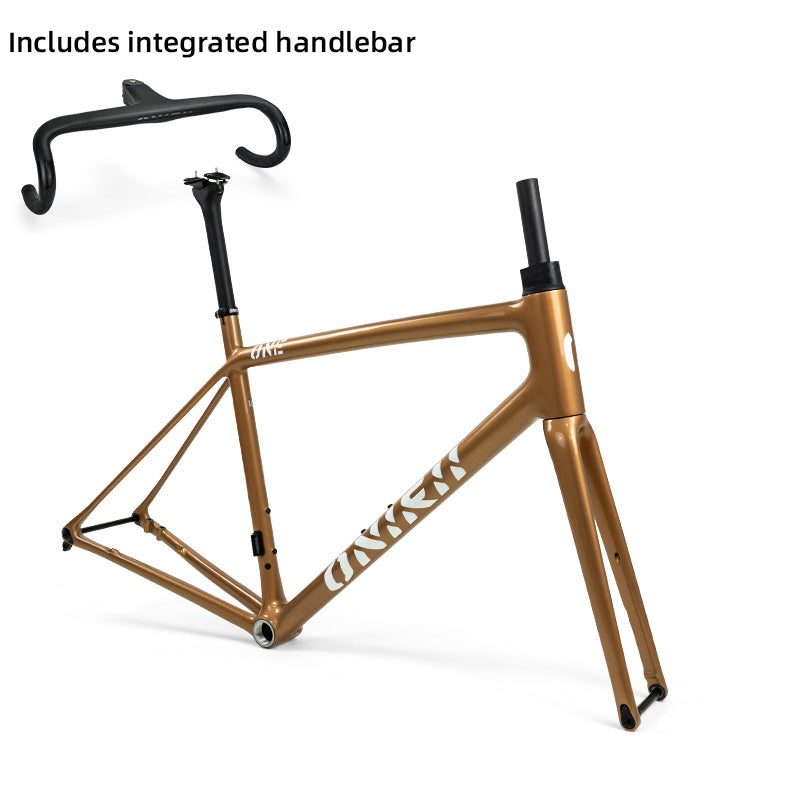

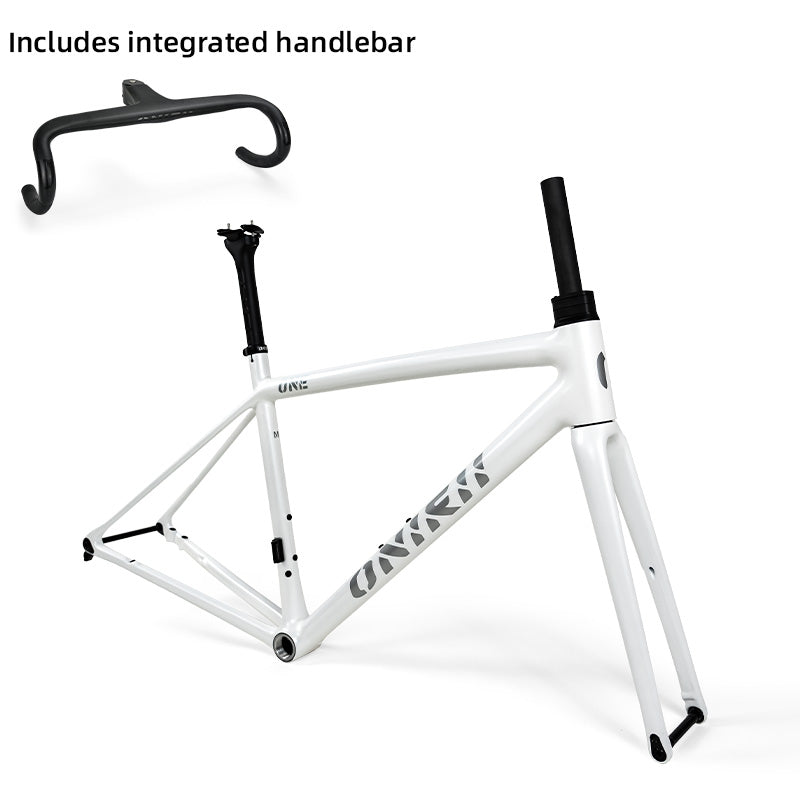

Please note: This frame includes an integrated handlebar, please note the specifications of the integrated handlebar you need after placing your order.

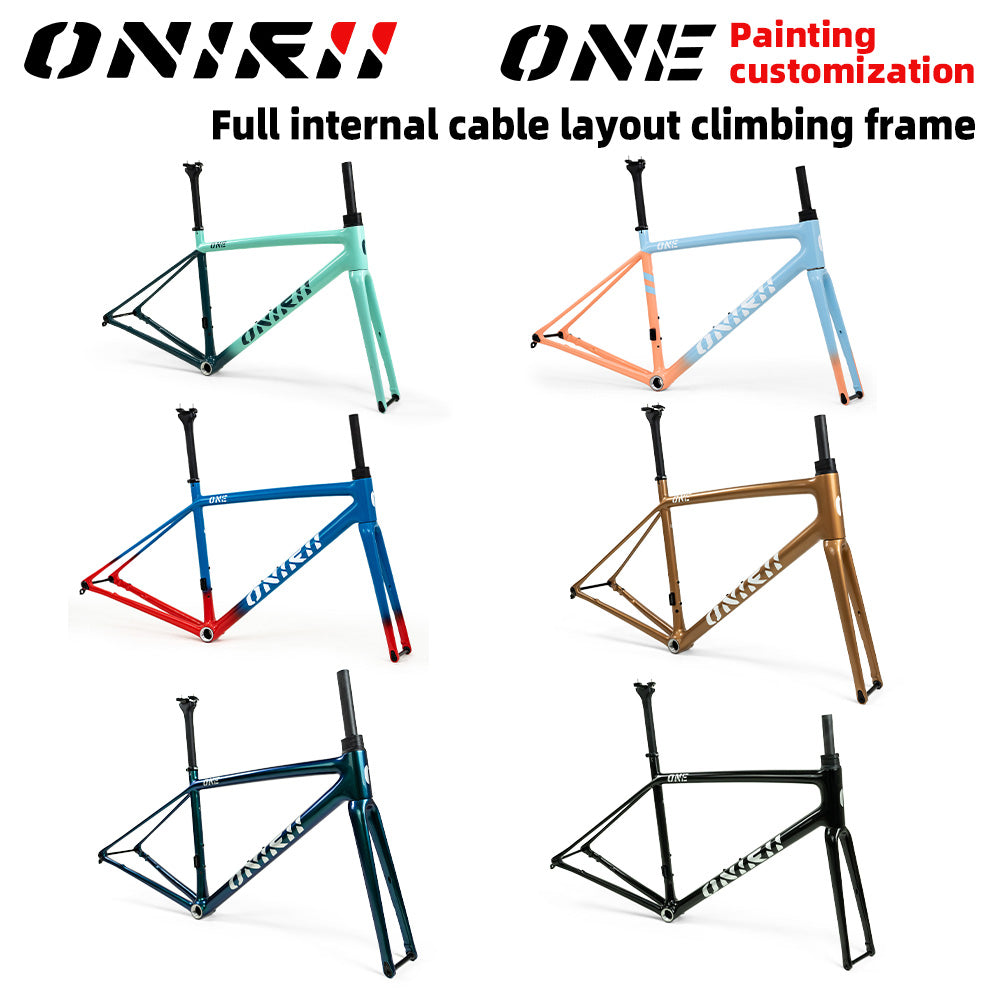

Painting customization

Free to customize one color, two colors gradient spray, cut off color painting, personalized signature, vector logo, if customization request more than 2 colors, then add 1 color charge 70 USD.

Frame surface can be selected: matte (frosted), gloss, clear lacquer (bare carbon).

Frame production period: 15-20 days.

Brand: ONIRII

Model: ONE

Frame Type: Climbing Frame

Frame material: T800 high mold

Bottom bracket specification: BSA68mm

Head tube specification: 52mmx7mm 1-1/2

Thru-axle specification: 12x100mm 12x142mm

Electronic transmission: support

Compatible with outer tires: 700x30C max

Brake Mount: Flat Mount Structure

Frame routing: full internal cable routing

Weight limit: 95kg/209lb

Warranty: 5 years

Reference weight:

Frame: 680g (size L, unpainted，without fork and seatpost, and frame accessories),

823g
(Bare carbon painting ，size S, with accessories，without fork, seatpost, )

Fork: 349g (uncut with paint)

Seatpost: 180g (27.2mm)

Integrated handlebar: 331g (400x90)

Note: The above weights are for reference only.

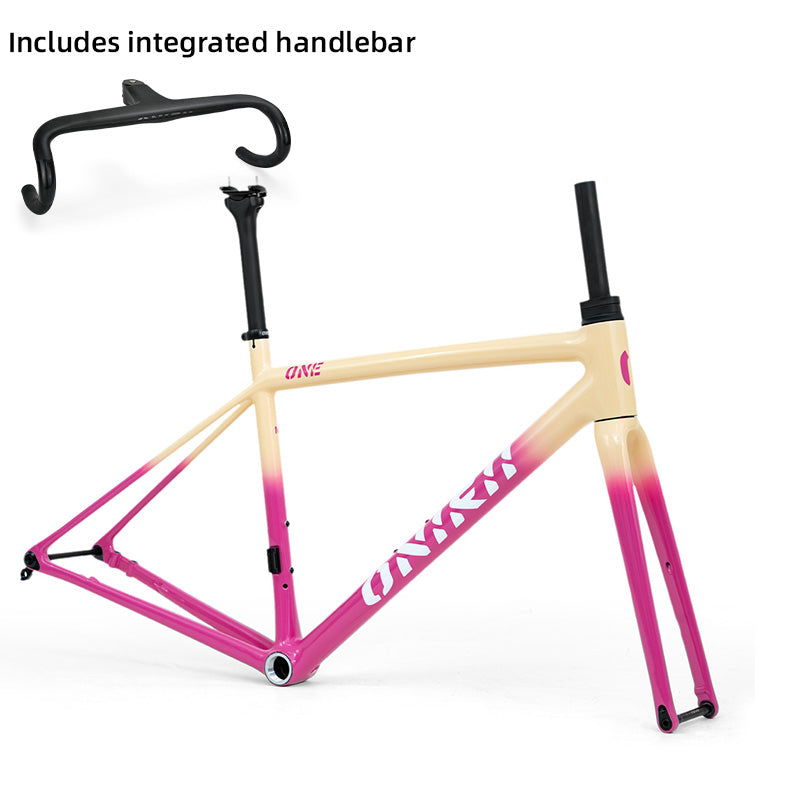

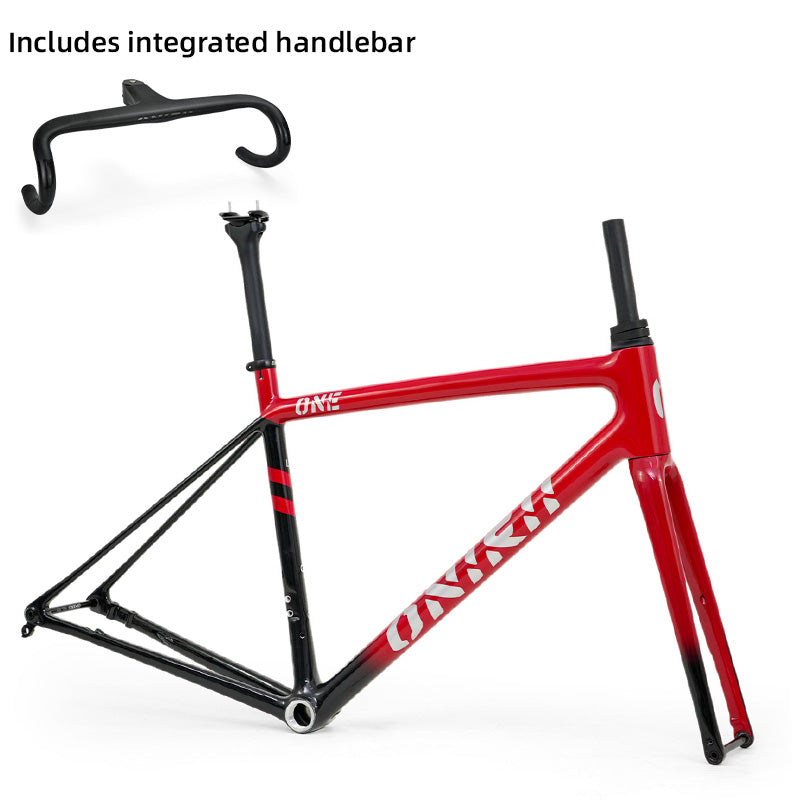

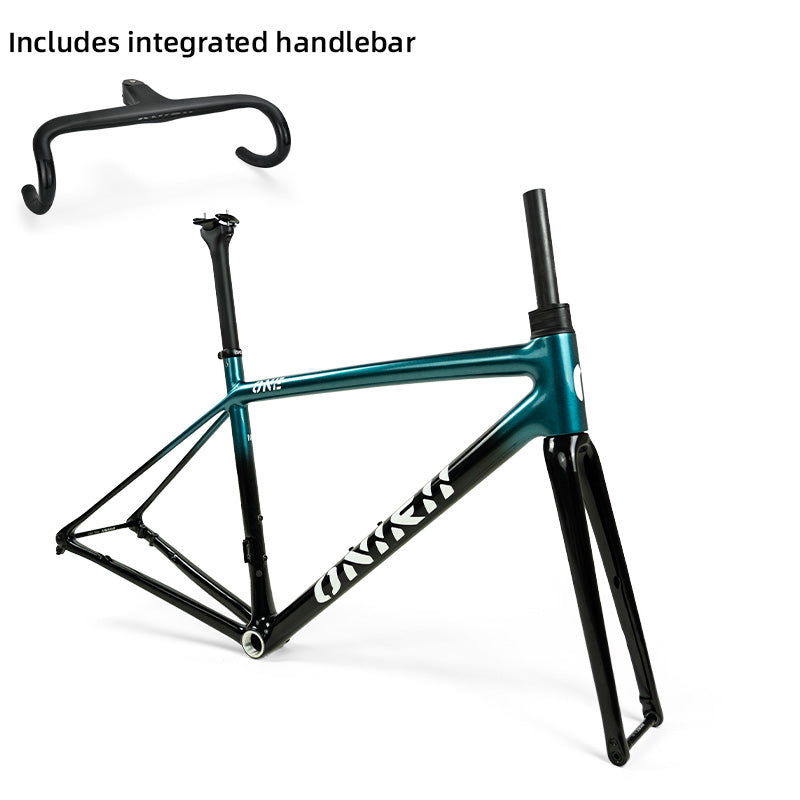

The frame comes with standard accessories:

Fork, seatpost, handlebar，eadset, washers, seatpost, seatpost clamp, front derailleur lugs, tail hook, thru-axle rod, titanium screws

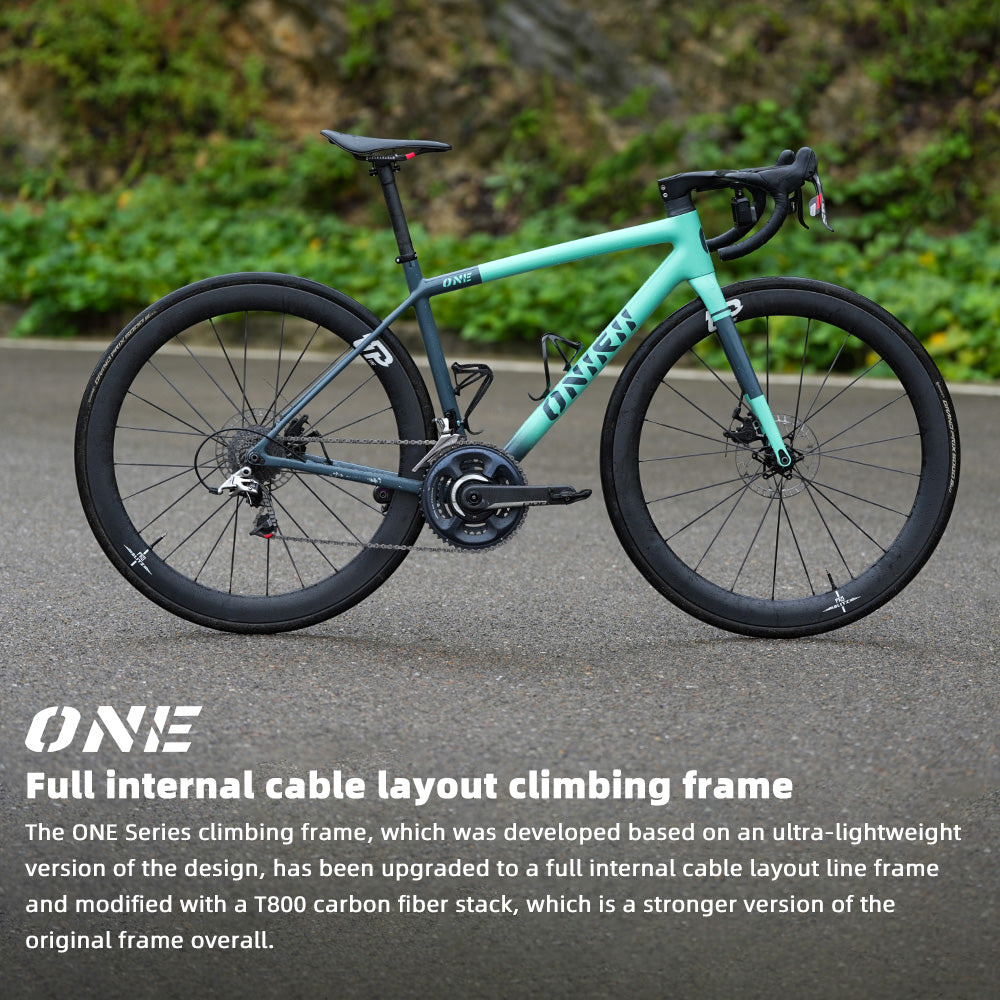

The ONE Series climbing frame, which was developed based on an ultra-lightweight version of the design, has been upgraded to a full internal cable layout line frame and modified with a T800 carbon fiber stack, which is a stronger version of the original frame overall.

Frame Performance：

Climbing: 93%

Ups and downs: 80%

Flat road: 75%

Frame geometry

The ONE is a pure rider's bike, with a light and agile control that allows every rider to not be afraid of any challenge of curves and steep hills. Our frame with a more stable ride performance is the best climbing partner in race performance!

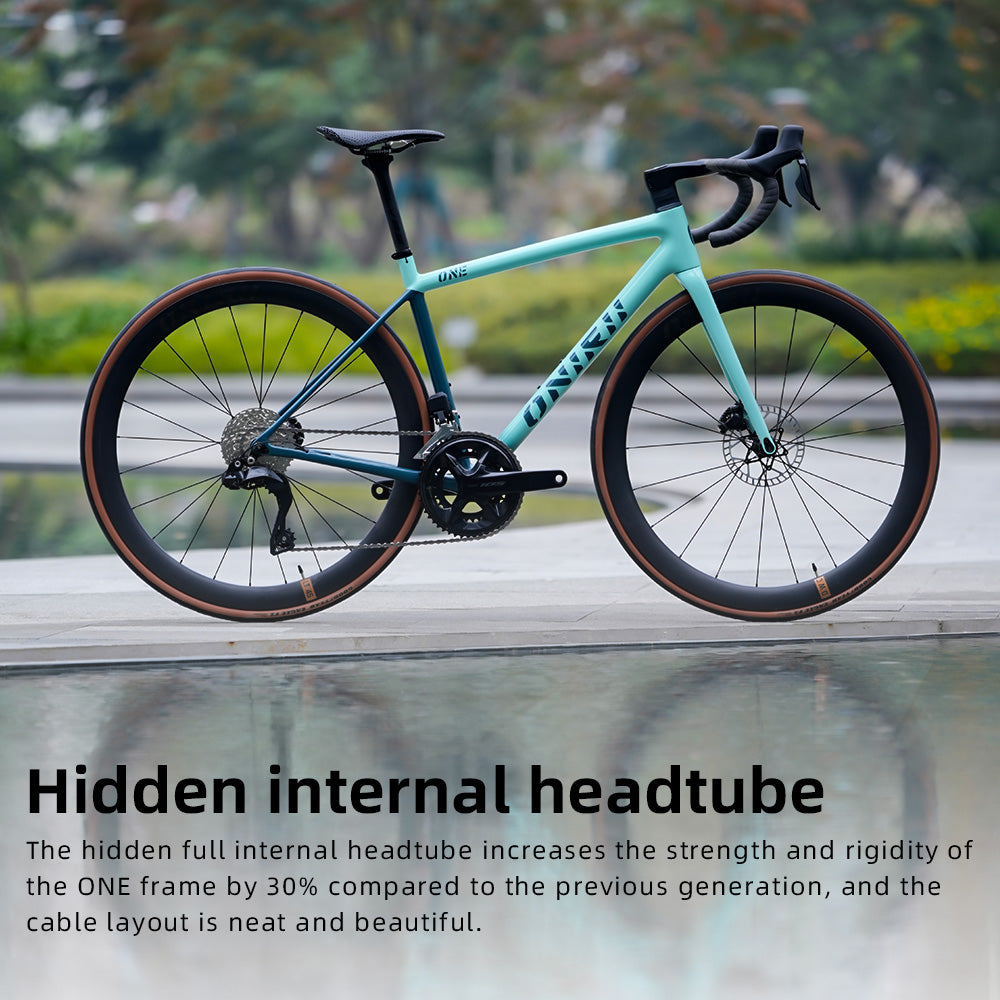

Hidden full internal headtube, compared to the previous generation of ONE climbing frame, its strength and rigidity increased by 30%, the overall cable layout of the frame is more neat and beautiful.

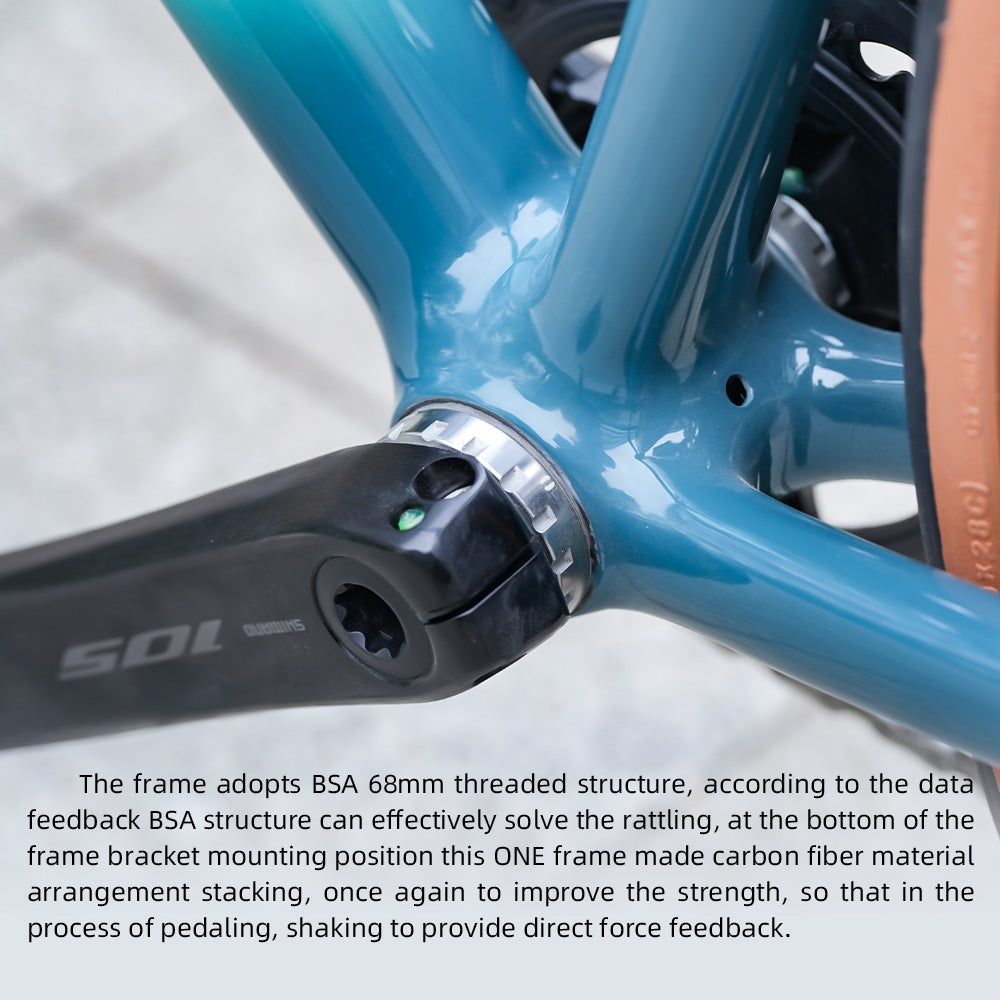

The frame adopts BSA 68mm threaded structure, according to the data feedback BSA structure can effectively solve the rattling, at the bottom of the frame bracket mounting position this ONE frame made carbon fiber material arrangement stacking, once again to improve the strength, so that in the process of pedaling, shaking to provide direct force feedback

Carbon hidden cable handlebar layout

Available integrated handlebar sizes

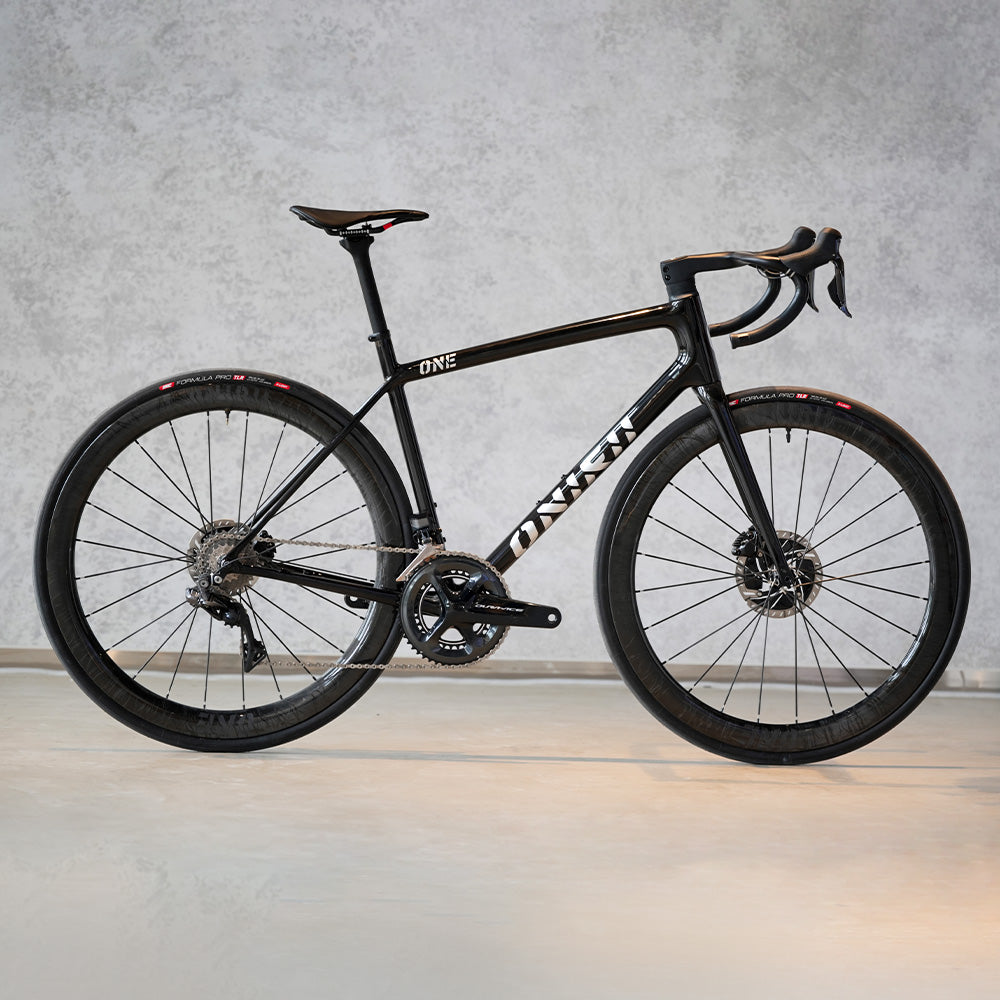

Installation effect show

Attention:

1, We will provide you with professional installation instructions to assist you to complete the installation and use of the bike.

2, The weight of the frame are all reference weight, different painting and different size weight is different, the actual weight please refer to the frame you received!

About after-sales:

1, Non-human damage, the frame is guaranteed for 5 years.
