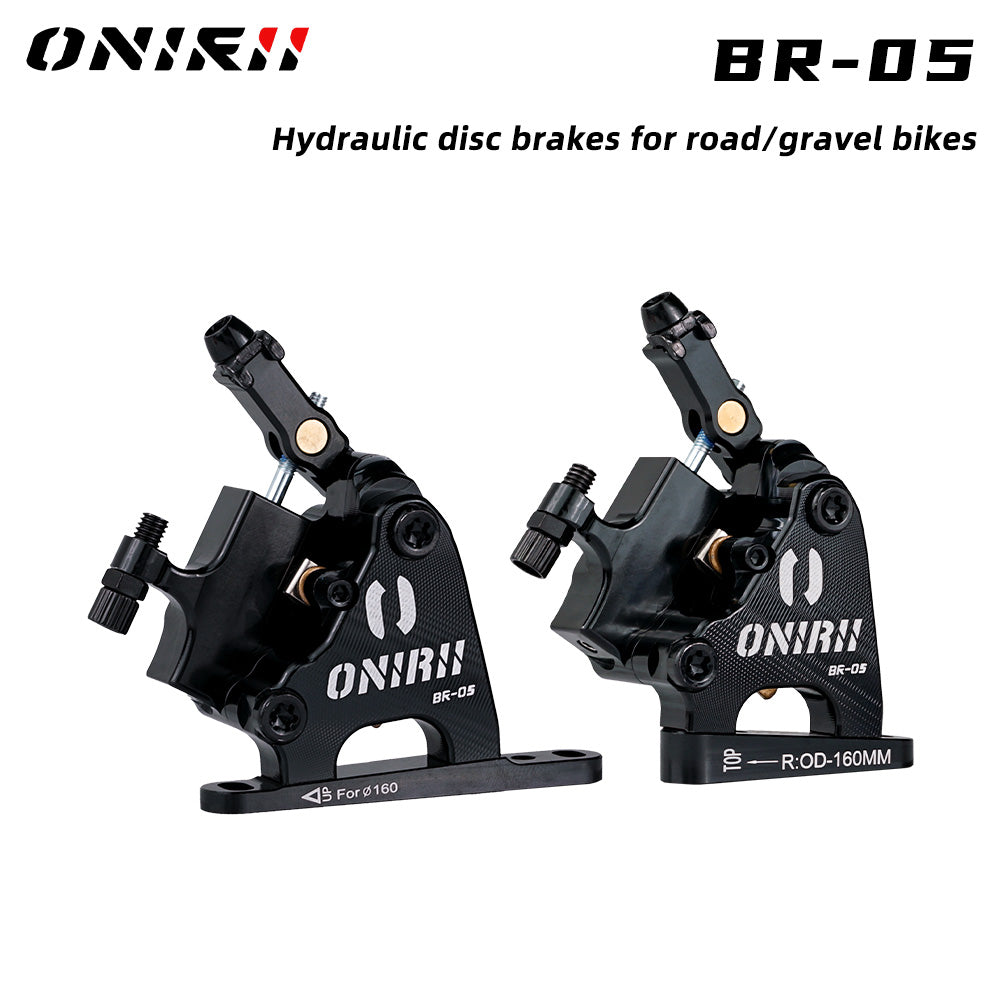

ONIRII BR-05 Mechanical Wire Pull Hydraulic Disc Brake Calipers Flat Mount Oil Disc Brake for Road Bike Gravel Bicycle New

ONIRII BR-05 Mechanical Wire Pull Hydraulic Disc Brake Calipers Flat Mount Oil Disc Brake for Road Bike Gravel Bicycle New

$68.92 USD
$68.92 USD
Sale Sold out
Shipping calculated at checkout.
颜色: without rotor black
Mechanical Wire Pull Hydraulic Disc Brake for Road Bikes, Gravel Bikes
Brand: ONIRII
Model:BR-05
Material: aluminum alloy
Process: CNC
Brake pad: same as Shimano XT brake pads

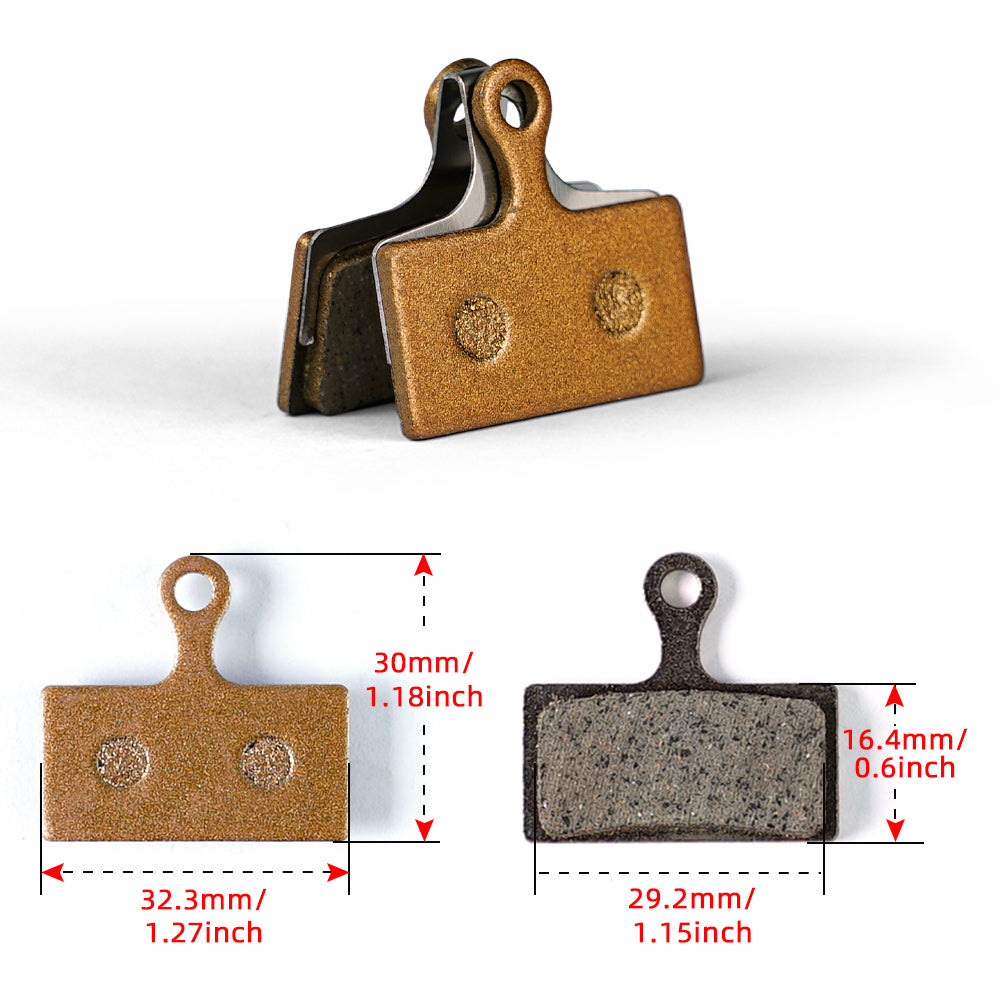

Brake pad: length 32.3mm width 16.4mm

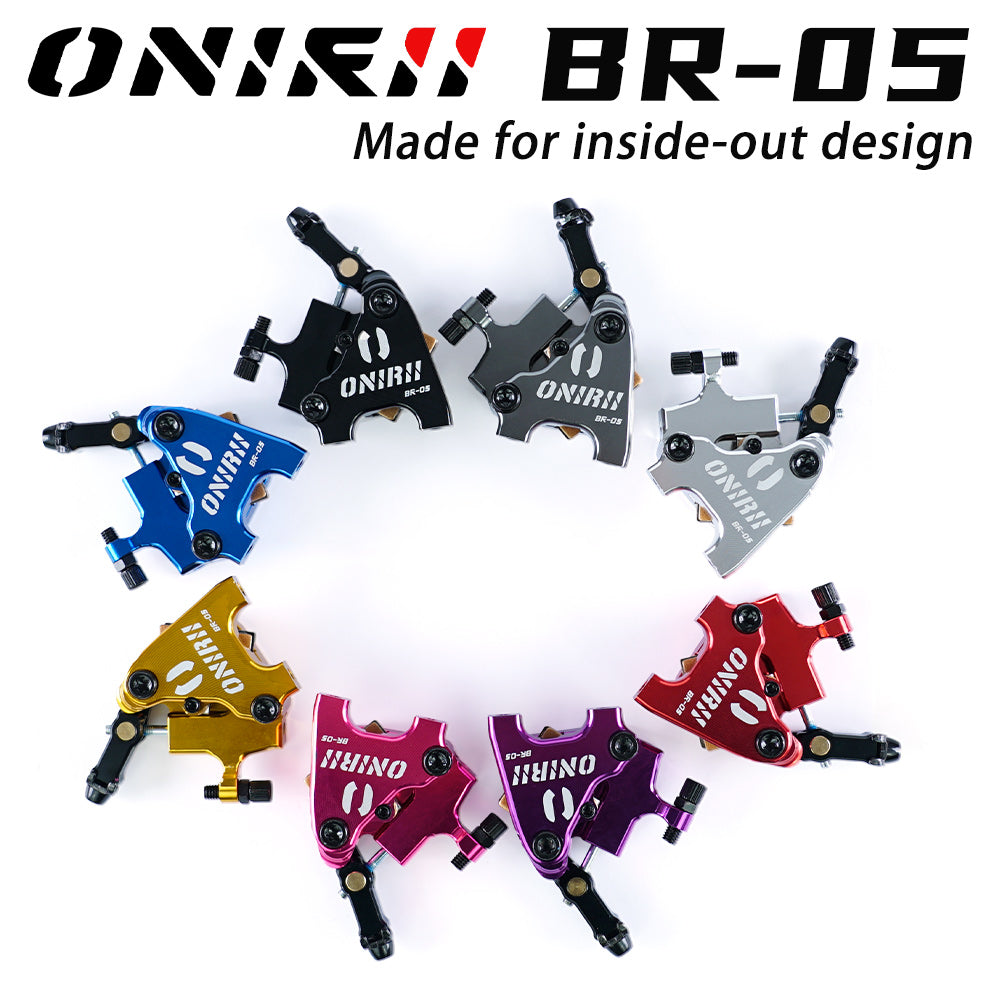

Color: black, titanium, silver, red, purple, pink, gold, blue
Surface: glossy
Suitable for: road bike/gravel bike
Brake weight: without supporter 160g, with supporter 176g
Full set weight: with floating rotor 533g , with ultra-light rotor 570g
Mounting hole distance: front brake 72mm, rear brake 34mm
Brake oil: mineral oil
* Currently only black is available, other colors are no longer sold

The brake wire pulling method is changed to the inside, which not only solves the problem of wire cornering, but also improves the feel and braking power

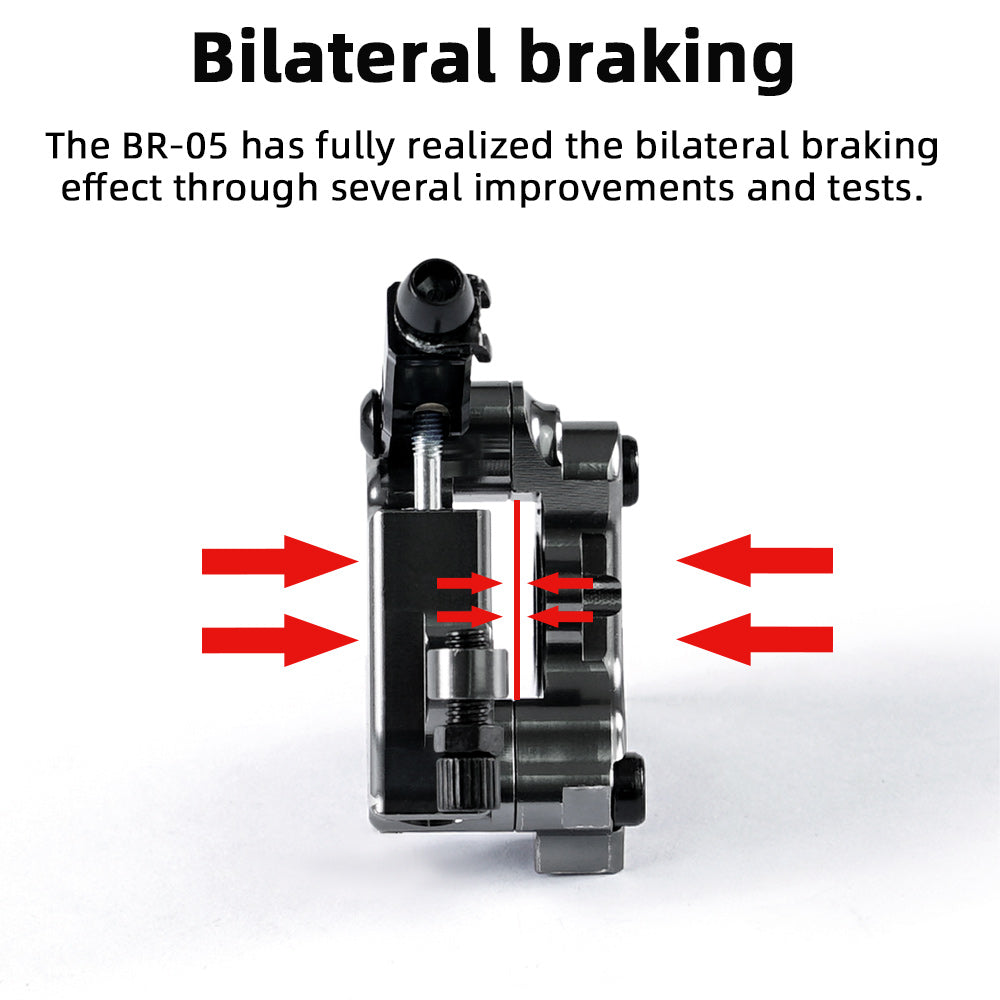

Through many improvements and tests, our BR-05 has fully realized the bilateral braking effect

Why choose a dual piston brake?
General brake single piston work leads to easy rotor deformation, uneven left and right friction, and limited brake braking power
BR-05 Dual piston work
Rotor always keeps central position, not easy to deform, smooth friction between left and right side, high braking force

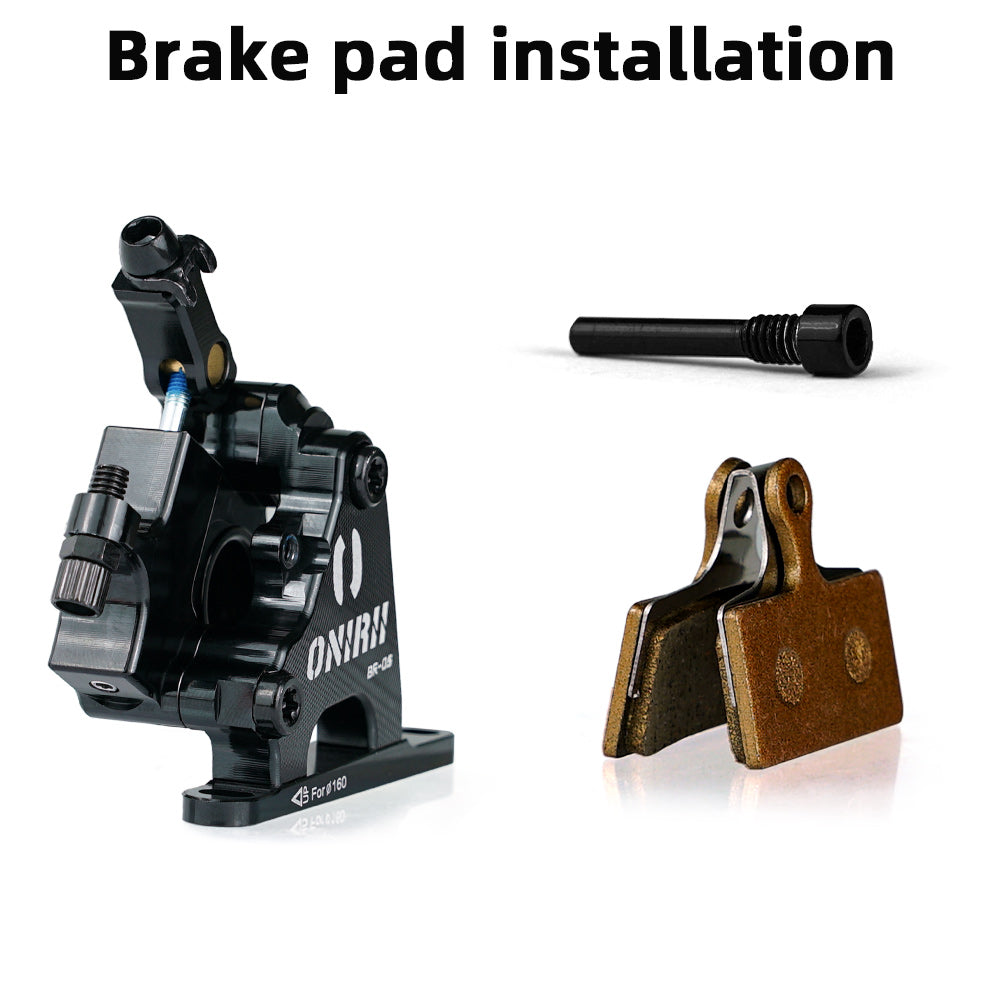

Brake pad installation and selection
Our brake pads are the same as Shimano XT

Front brake supporter front mounting 160mm, reverse mounting 140mm

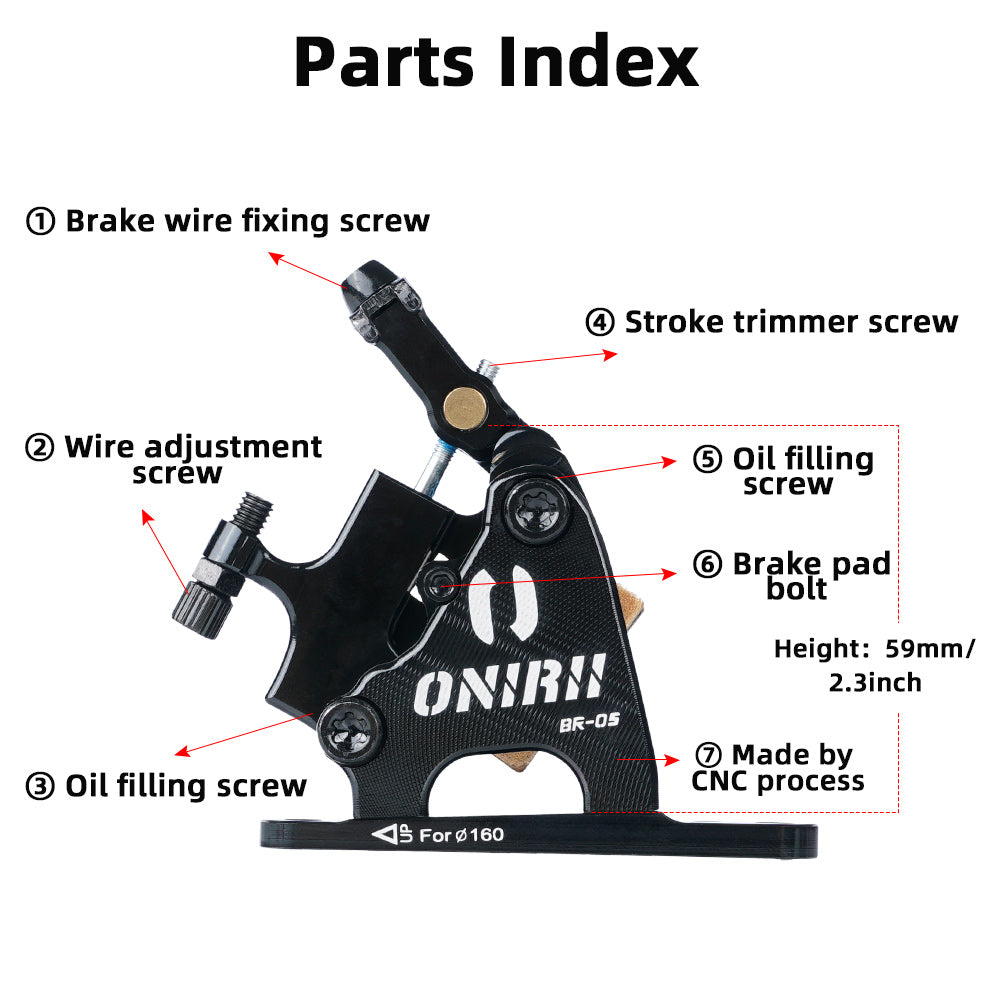

①Brake wire fixing screw
②Wire adjustment screw
③Oil filling screw
④Stroke trimmer screw
⑤Oil filling screw
⑥Brake pad bolt
⑦Made by CNC process

Practical oiling method
Adopting front-to-back oiling method, this oiling method can effectively evacuate the air inside the brake
You can do the oil change and brake maintenance by yourself through the brake oil fill hole

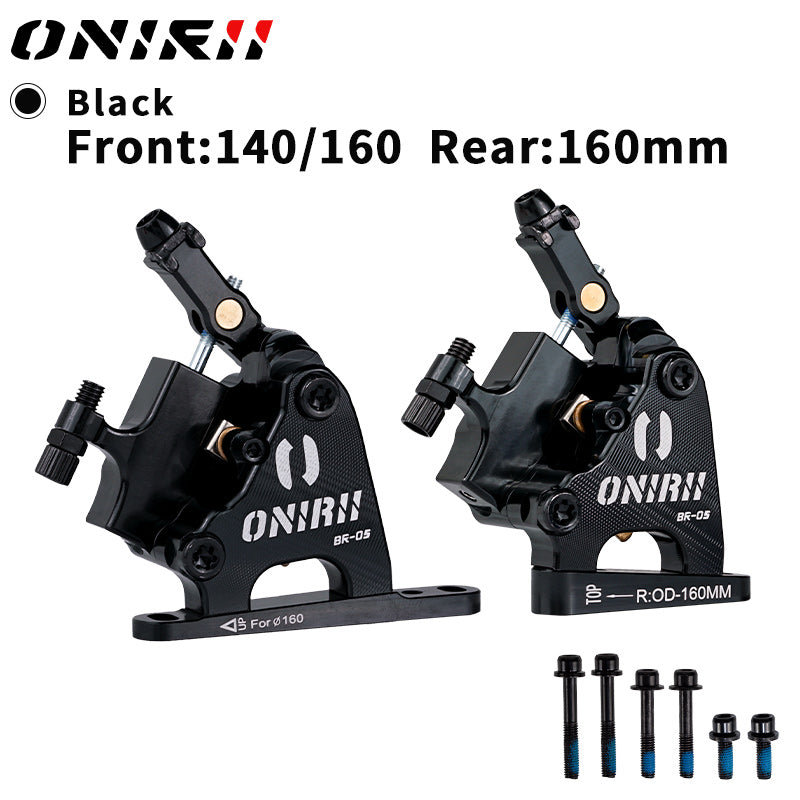

Application of brake adapter

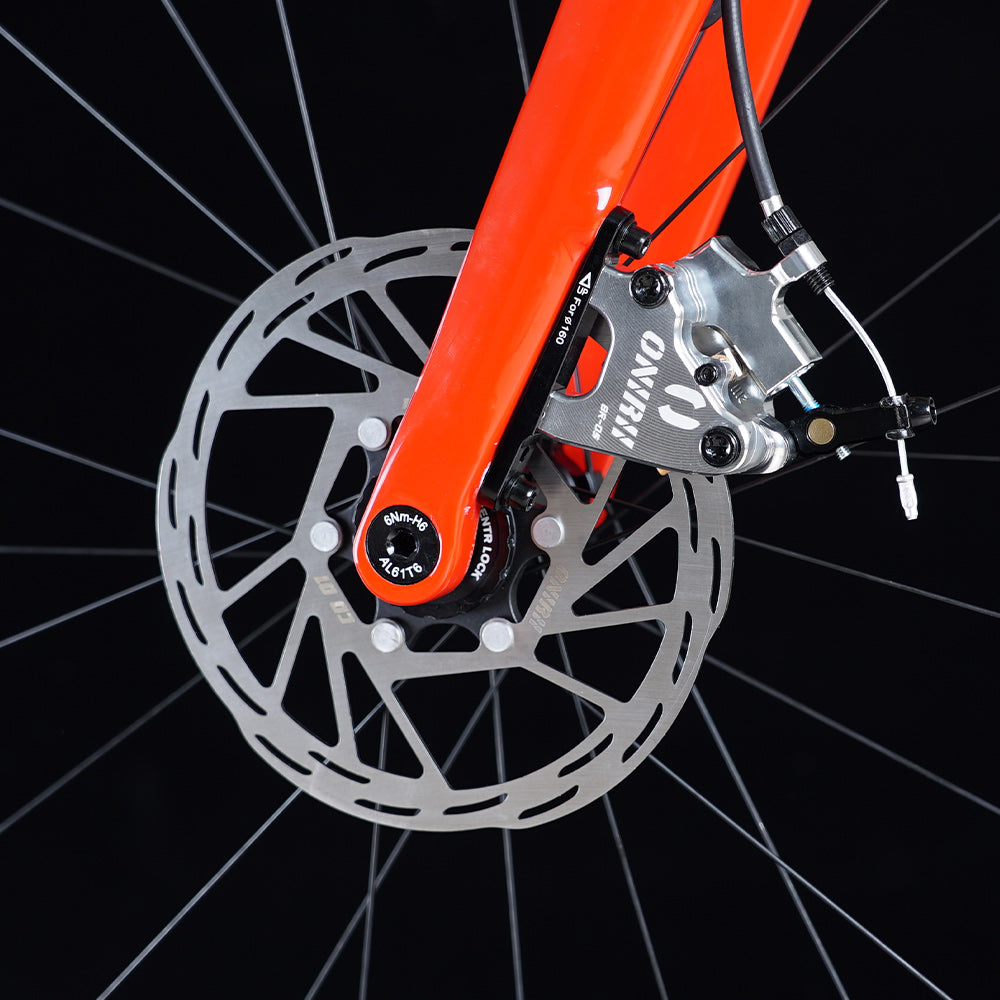

Front brake: 140mm and 160mm universal

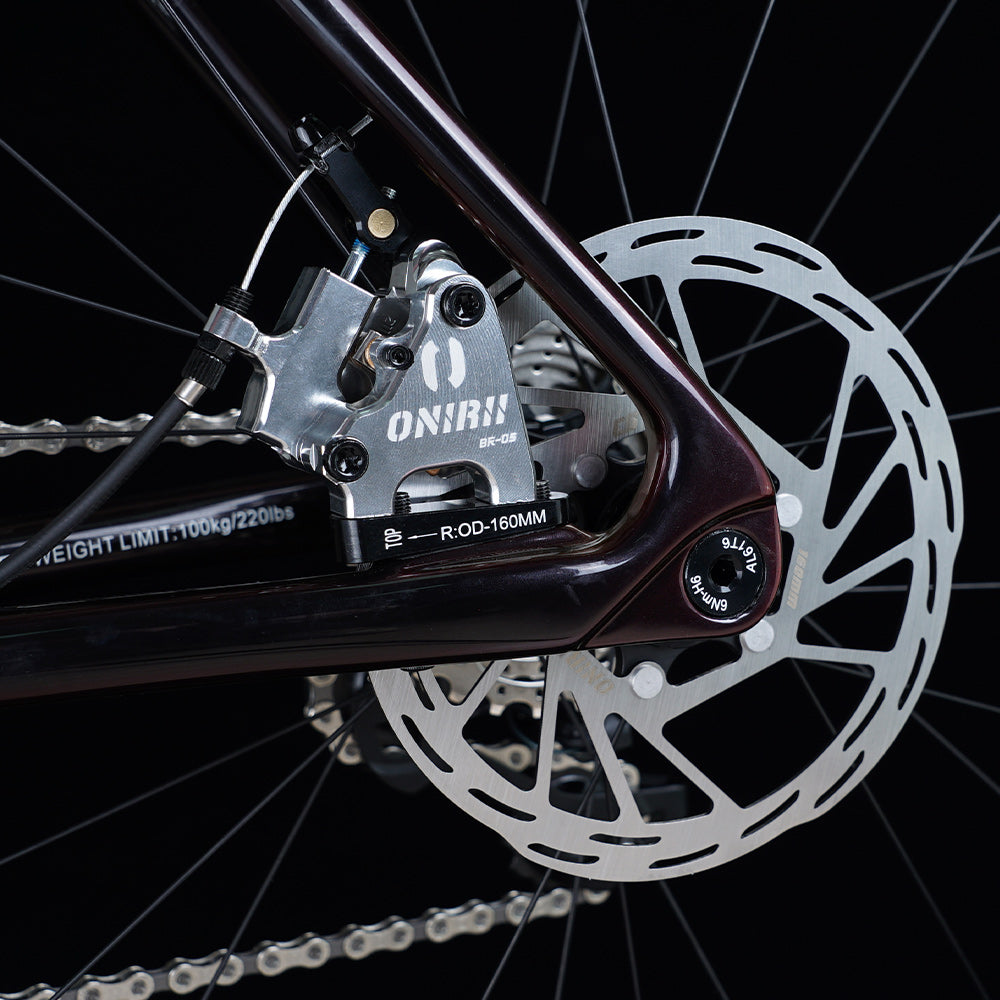

Rear brake： plus this shorter adapter is 160mm，without it, it's 140mm.

Frame hole spacing mounting specifications

Proof of professional testing
Our brakes have a TUV test certificate, the TUV mark is a safety certification mark customized for component products by TUV Germany and is widely accepted in Germany and Europe.

Special Tips:
1, brake installation is recommended to professional bicycle repair store for installation, installation and operation should wear maintenance gloves, to avoid hand oil stained on the brake rotor.
2, the installation should be adjusted to ensure that the pressure is sufficient, with braking effect.
3、If the new brake is used with the old rotor, it is recommended that the old rotor be cleaned first to avoid oil or stains on the rotor causing problems. (It is recommended to use the new brake with the new rotor, or the new brake pad with the new rotor).
4、Regular inspection and maintenance of brakes should be carried out during daily riding to avoid safety risks.

After-sales rules:
1, non-human damage warranty of one year
2, the warranty scope, brake housing, seals, screws and other parts
3, brake pads, rotors belong to the wear parts, not in the warranty scope
